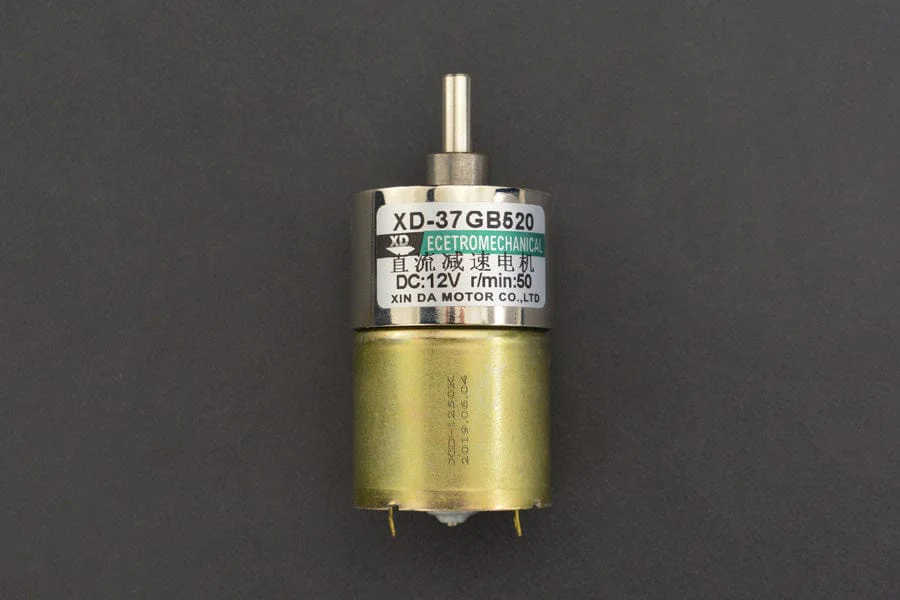

Metal DC Geared Motor - 12V 50RPM 26kg.cm
This is a metal DC geared motor, 100% pure copper coils, high-density molecular layer, 100:1 metal reducer, small size, large torque. The maximum torque could arrive 26 kg.cm, stable and durable!
Specification
- Rated voltage: 12 V
- Gear reduction ratio: 100:1
- D output shaft diameter: 6 mm
- No-load speed: 50 RPM @ 12 v
- No-load current: 0.17 A
- Rated speed: 45 RPM @ 12 v
- Current rating: 0.68 A
- Rated torque: 9 kg.cm
- Locked-rotor torque: 26 kg.cm
- Locked-rotor current: 2.19 A
- Power: 5W
- Weight: 210 g
Shipping List
- Metal DC Geared Motor - 12V 50RPM 26kg.cm x1
$4.02
Original: $11.50
-65%Metal DC Geared Motor - 12V 50RPM 26kg.cm—
$11.50
$4.02
Description
This is a metal DC geared motor, 100% pure copper coils, high-density molecular layer, 100:1 metal reducer, small size, large torque. The maximum torque could arrive 26 kg.cm, stable and durable!
Specification
- Rated voltage: 12 V
- Gear reduction ratio: 100:1
- D output shaft diameter: 6 mm
- No-load speed: 50 RPM @ 12 v
- No-load current: 0.17 A
- Rated speed: 45 RPM @ 12 v
- Current rating: 0.68 A
- Rated torque: 9 kg.cm
- Locked-rotor torque: 26 kg.cm
- Locked-rotor current: 2.19 A
- Power: 5W
- Weight: 210 g
Shipping List
- Metal DC Geared Motor - 12V 50RPM 26kg.cm x1
